SI-RDE-AD Precision Rotating Ring Disk Electrode (RRDE) System - Advanced CNC Control, ±0.1% Accuracy, 50-10,000 RPM
The SAVEIONS SI-RDE-AD / SI-RRDE-AD is a high-precision rotating disk and ring-disk electrode system designed for advanced electrochemical research. Featuring 32-bit DSP digital control, 50–10,000 rpm operation, explosion-proof safety design, and full PINE compatibility, it delivers exceptional accuracy, stability, and reliability for electrocatalysis, battery, fuel cell, and corrosion studies.
Description

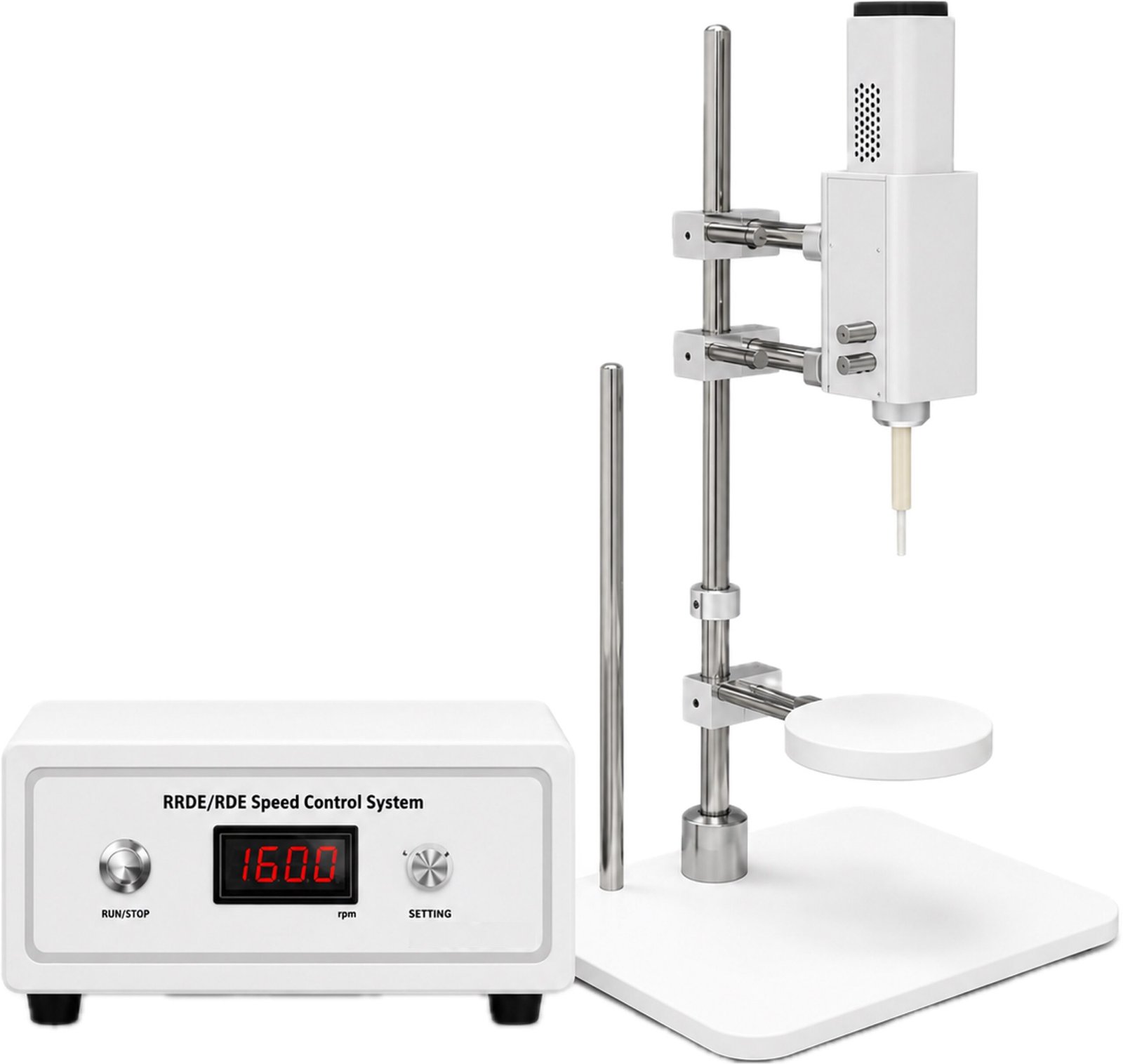

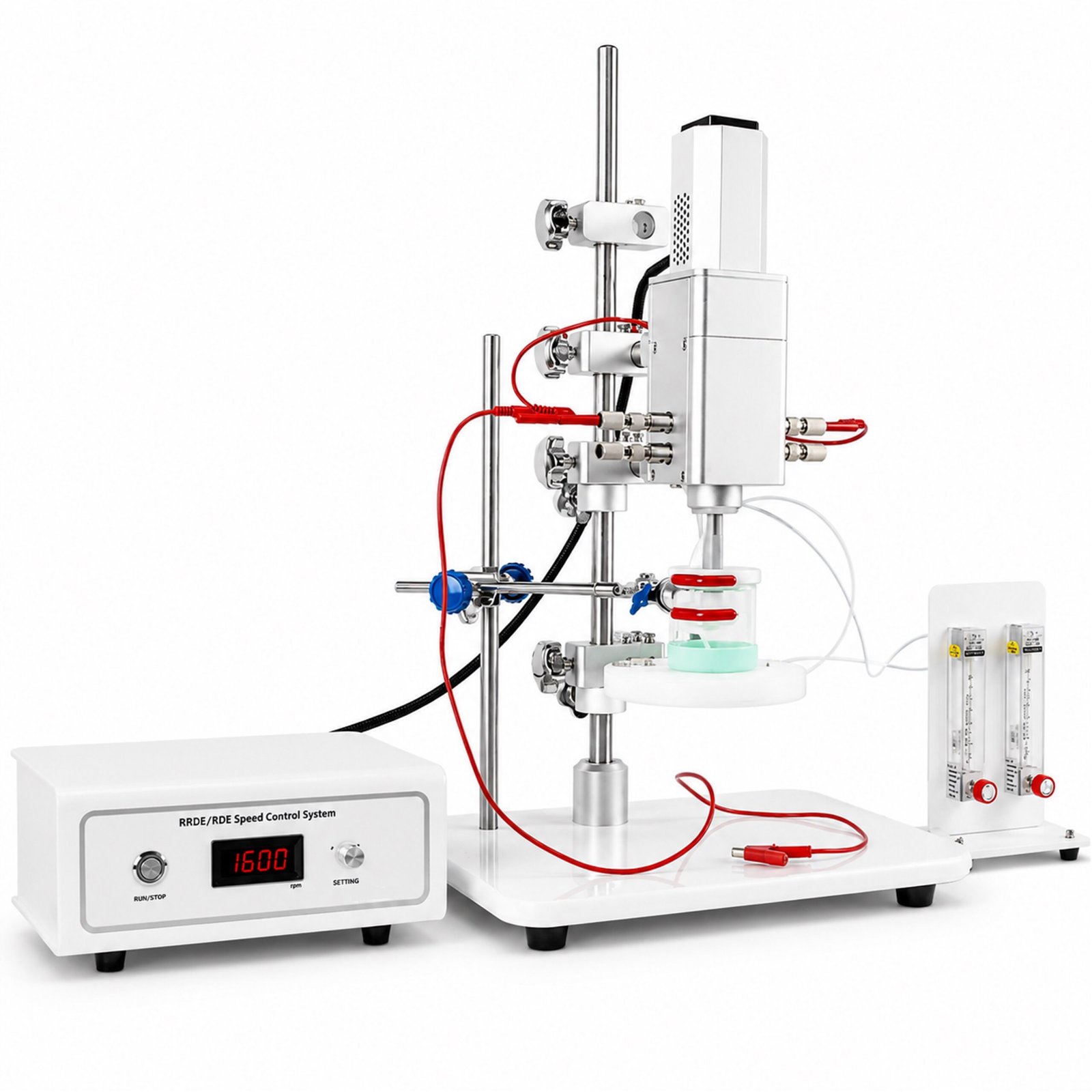

SI-RDE-AD Precision Rotating Disk Electrode
Product Description:
The SAVEIONS SI-RDE-AD Precision Rotating Disk Electrode System is a premium laboratory-grade electrochemical instrument designed for high-accuracy hydrodynamic electrochemical measurements. Engineered with advanced 32-bit DSP closed-loop digital control, the SI-RDE-AD delivers stable rotation.It includes explosion-proof safety features. It fully supports American Pine electrode heads. It provides reliable signals for advanced electrochemical research.
The system is ideal for applications in electrocatalysis, battery materials research, hydrogen technologies, corrosion studies, fuel cell catalyst evaluation, and reaction kinetics analysis.
SAVEIONS Advanced Rotating Electrode Systems Comparison
| Specification | SI-RDE-AD | SI-RRDE-AD |
|---|---|---|
| Rotational Speed | 50–10,000 rpm with LED digital display. Speed accuracy: ±1 rpm/1000 rpm. Equipped with a 0.05 HP motor, closed-loop control system, control error <0.1%, and silver-carbon brush electrical contact for stable signal transmission. | 50–10,000 rpm with LED digital display. Speed accuracy: ±1 rpm/1000 rpm. Equipped with a 0.05 HP motor, closed-loop control system, control error <0.1%, and silver-carbon brush electrical contact for stable signal transmission. |
| Control System | Digital encoder with 32-bit DSP digital control. Split-control architecture with detachable structure, suitable for glove box operation. Integrated signal input/output interface allows external speed control and automation integration. | Digital encoder with 32-bit DSP digital control. Split-control architecture with detachable structure, suitable for glove box operation. Integrated signal input/output interface allows external speed control and automation integration. |
| Explosion-Proof Design | Integrated explosion-proof design for enhanced laboratory safety and operation under demanding experimental environments. | Integrated explosion-proof design for enhanced laboratory safety and operation under demanding experimental environments. |
| Disk-Ring Electrode Support | Not supported. Designed exclusively for high-precision rotating disk electrode (RDE) applications. | Fully supported. External threaded design compatible with American PINE ring-disk electrode heads, ensuring excellent electrical contact and stable signal transmission. Disc material: Glassy Carbon. Ring material: Platinum. Housing material: PTFE (Teflon). Disk-ring clearance ≤320 μm. Dimensional accuracy: 0.01 mm. Disk diameter: 5.61 mm. Ring inner diameter: 6.25 mm. Ring outer diameter: 7.92 mm. Collection efficiency: 37%. |
For customisation, please contact: SAVEIONS LTD.
